Selecting What to Import

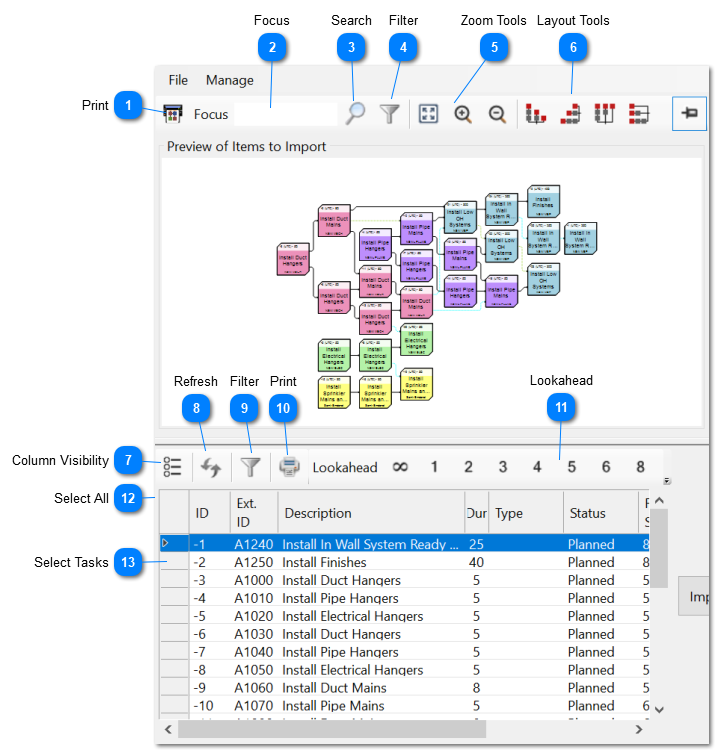

The imported tasks network view provides full task editing and layout tools.  The right click menu provides familiar tools to Edit, Trace, and Organize the activities in the network view.  The Filter and Search tools provide capabilities to narrow down the selection to a specific subset of the tasks in the XML file.  Once you narrow down the selection, you can refresh the associated list view to show only those tasks that are visible in the network view.

Selecting What to Import
1

Print

  1. Print
            Print the current view.
2

Focus

2. Focus
Type the External Task ID to find and zoom to the task in the network view.
3

Search

3. Search
Open the Search Dialog to search by Task Description, Duration, or other imported properties under the User fields.
4

Filter

4. Filter
Open the Filter Dialog to search or filter by Task Description, Duration, or other imported properties under the User fields.
5

Zoom Tools

5. Zoom Tools
Use to Fit the entire plan or to Zoom in or out.
6

Layout Tools

6. Layout Tools
Layout tools to arrange the activities in different ways.

7

Column Visibility

7. Column Visibility
Use this tool to toggle the visibility of the columns representing the task attributes.
8

Refresh

8. Refresh
Update the list view to match the visible tasks in the network view.
9

Filter

9. Filter
Enable column filters.  When column filters are enabled, you will be able to click on column headings to sort or to filter the list further based on the value of the column cells.
10

Print

10. Print
Print and Print preview of the list view.
11

Lookahead

11. Lookahead
Trim the list view to show all tasks or the tasks with a Required Start (RS) that falls in the next x number of weeks from Today.
12

Select All

Click on the Header Cell to select all visible tasks in the list view.
13

Select Tasks

Hold the Shift or Control keys to select multiple tasks from the list view.
